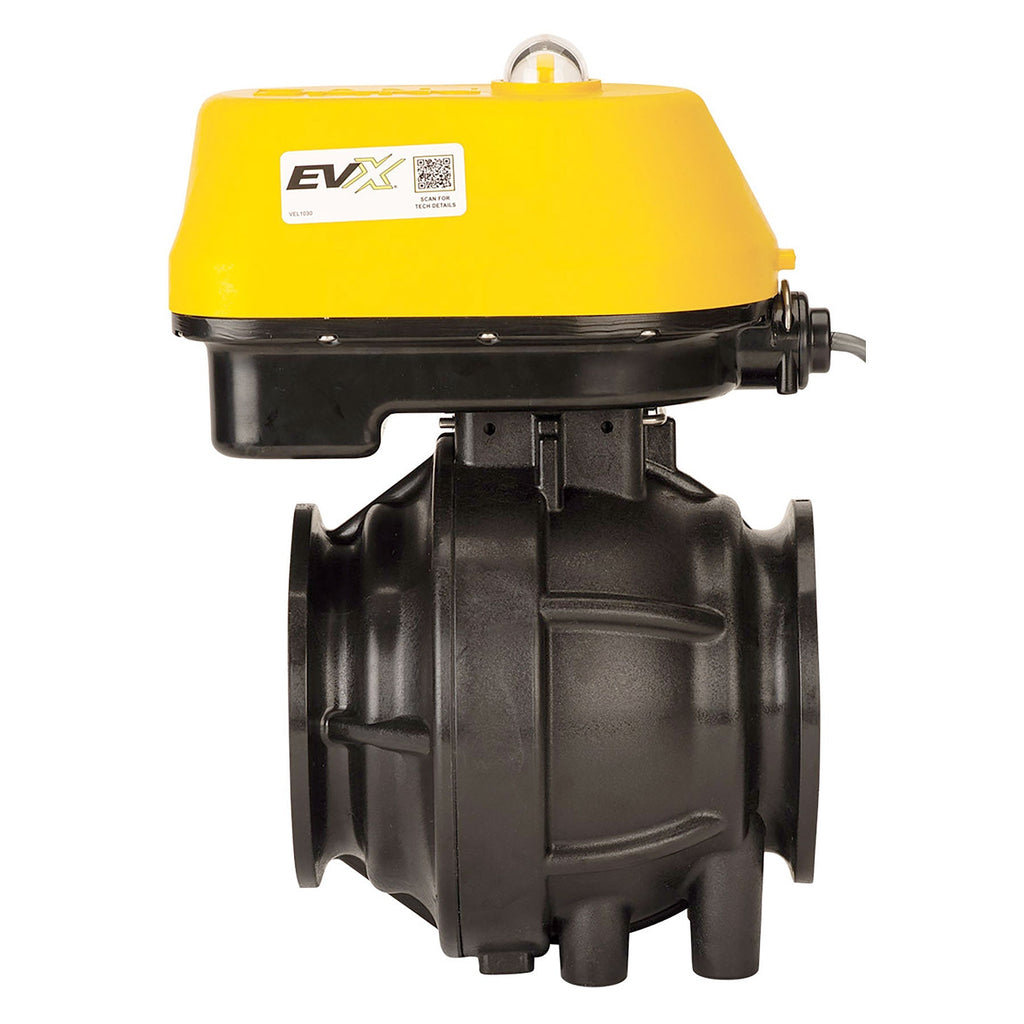

Description
- 12-volt DC operated
- 24-volt available
- special order contact sales
- Open/closed indicator
- On/Off 3 in. has 4 second response
- Regulating 3 in. has 4 second response
- Open / Close verification available
- IP68 waterproof
- -0 to 150F (-18 to 65C) operating
- -67 to 221F (-55 to 105C) storage
- Actuator rated to 250,000 cycles
- Valve rated to 50,000 cycles leak-free
- Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
- 316 stainless steel ball & stem
- Stainless steel hardware
- Fiberglass reinforced polypropylene
- Zinc alloy lower actuator housing
- PTFE seats
- FKM stem seals
- Red = +12V DC
- Black = Ground
- White = +12VDC (Open) / 0VDC (Close)
- Red = +12V DC (Open)
- White = Ground (Open)
- Black = +12V DC (Close)
- Green = Ground (Close)
