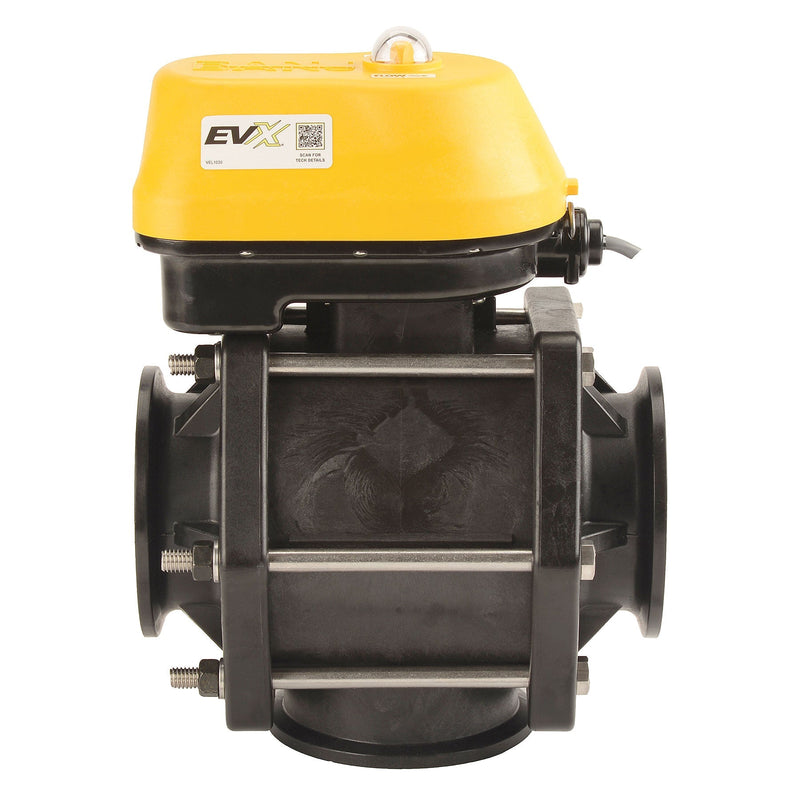

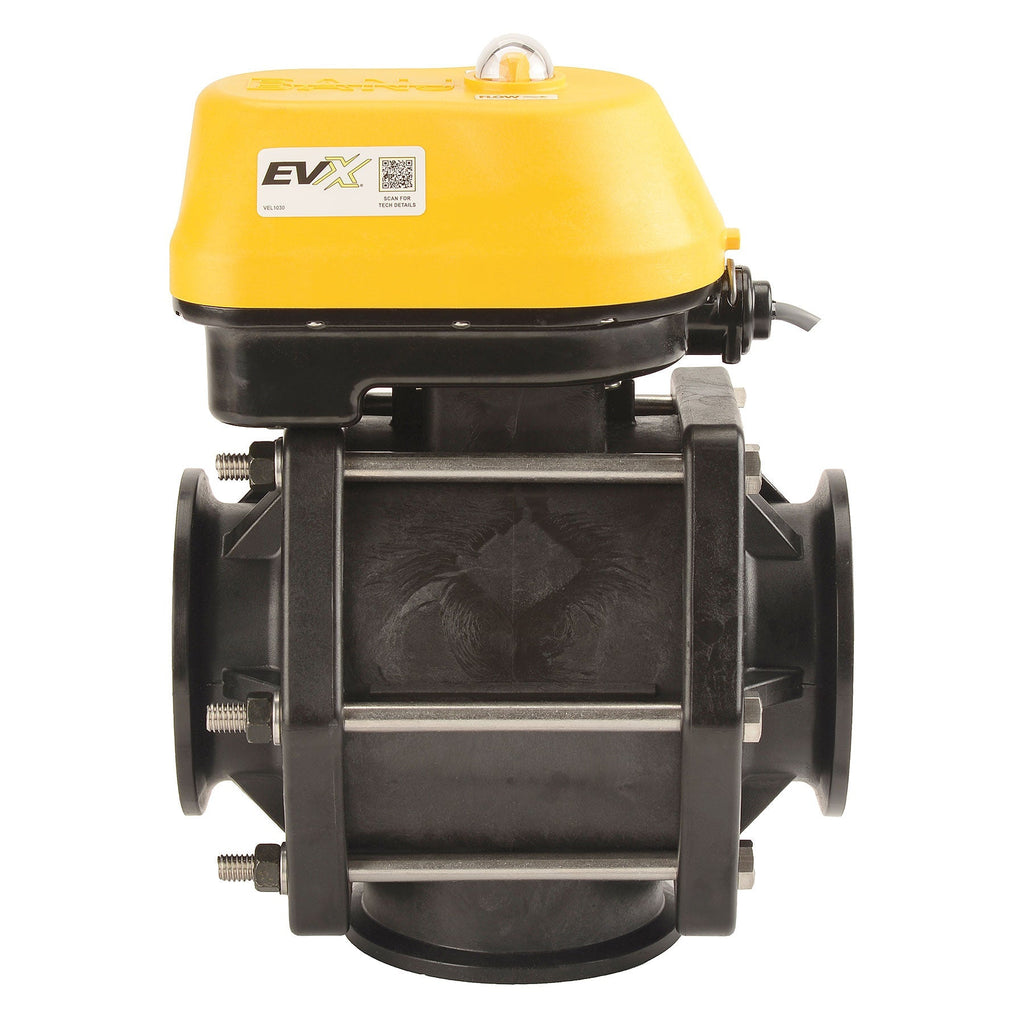

3 in. Full Port Manifold Bottom Load 12 or 24-Volt DC Electric Valve Bolted

• 12-volt DC operated

• 24-volt available

• Open/closed indicator

• On/Off 1 in. has 3/4 second response

• On/Off 2 in. has 1-1/2 second response

• On/Off 3 in. has 4 second response

• Open / Close verification available

• IP68 waterproof

• -0 to 150F (-18 to 65C) operating

• -67 to 221F (-55 to 105C) storage

• 1 in.-2 in. On/Off Actuator rated to 500,000 cycles

• 3 in. On/Off & RegulatingActuator rated to 250,000 cycles

• Valve rated to 50,000 cycles leak-free

• Additional protocols available including CAN/ISO BUS, Proportional Control and PWM


MATERIALS

• 316 stainless steel ball & stem

• Stainless steel hardware

• Fiberglass reinforced polypropylene

• Zinc alloy lower actuator housing (3 in. only)

• PTFE seats

• FKM stem seals


On/Off

• Red = +12V DC

• Black = Ground

• White = +12VDC (Open) / 0VDC (Close)


4 Wire Regulating

• Red = +12V DC (Open)

• White = Ground (Open)

• Black = +12V DC (Close)

• Green = Ground (Close)
